Are BSP and NPT Compatible?
The claim in question is whether British Standard Pipe (BSP) threads and National Pipe Tapered (NPT) threads are compatible with each other. This issue is significant in various industries, including plumbing and hydraulics, where the correct fitting of pipes and connectors is crucial for safety and functionality.
What We Know
-
Thread Design Differences: NPT threads have a 60-degree angle, while BSP threads have a 55-degree angle. Additionally, NPT threads are characterized by sharp crests and roots, whereas BSP threads feature rounded crests and roots 18.
-

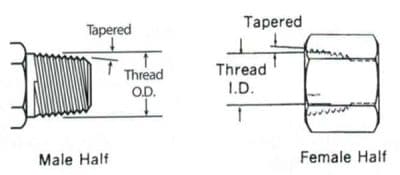

Taper Specifications: NPT threads taper at a rate of 3/4 inch per foot, while BSP threads taper at a rate of 1 in 20 8. This difference in taper can affect how well the threads seal when connected.
-
Pitch Differences: The number of threads per inch varies between the two types. For instance, a 1/4" NPT thread has 18 threads per inch, while a 1/4" BSP thread has 19 threads per inch 7. This discrepancy can lead to misalignment when attempting to connect the two.
-
Compatibility Conclusion: Most sources agree that BSP and NPT threads are not compatible due to the differences in their design and specifications 2469.
-
Industry Implications: The incompatibility can lead to leaks and failures in systems if fittings are incorrectly assumed to be interchangeable. This is particularly critical in applications involving pressurized systems, such as oil and gas exploration 56.
Analysis
Source Reliability
-
Technical Articles: Sources like Plumbing Sniper 1 and Titan Fittings 5 provide detailed technical comparisons and are generally reliable due to their focus on plumbing and fittings. However, they may have a slight bias toward promoting their products or services.
-
Industry Support: The Ajax Systems Support page 23 offers a straightforward explanation of thread compatibility, though it is important to note that the source is affiliated with a company that sells related products, which may influence the presentation of information.
-
Expert Forums: Discussions on platforms like Eng-Tips 7 can provide insights from professionals in the field, but the reliability of these sources can vary based on the expertise and motivations of the contributors.
-
Educational Content: Articles from Tameson 10 and other educational resources tend to be more neutral and provide a broader context, making them valuable for understanding the implications of thread compatibility.
Conflicts of Interest
Some sources may have a vested interest in promoting specific fittings or standards, which could lead to biased information. For example, manufacturers of BSP fittings may emphasize the advantages of their products over NPT without fully addressing compatibility issues.
Methodology and Evidence
The evidence presented in these sources is primarily based on technical specifications and industry standards. However, there is a lack of empirical studies or testing data that directly compares the performance of BSP and NPT threads when used together. This absence of experimental validation raises questions about the robustness of the claims regarding their incompatibility.
Conclusion
Verdict: False
The claim that BSP and NPT threads are compatible is false. Key evidence supporting this conclusion includes the differences in thread design angles, taper specifications, and thread pitch, which collectively indicate that these two types of threads cannot effectively seal when connected. Most reliable sources confirm that the incompatibility can lead to significant issues, such as leaks and system failures, particularly in high-pressure applications.
However, it is important to acknowledge the limitations of the available evidence. While the technical specifications suggest incompatibility, there is a lack of empirical studies directly testing the performance of these threads when used together. This absence of experimental data means that while the consensus is strong, it is not absolute.
Readers are encouraged to critically evaluate information regarding thread compatibility and consult multiple sources to form a well-rounded understanding of the topic.
